Load capacity

3000 kg

Max. speed

23 Km/h

FL 3,0

Load capacity

3000 kg

Max. speed

23 Km/h

[larghezza_carrelli]
Technical Data

Magni forklifts stand out not only for their characteristic red color, but also for a basic configuration, enriched with targeted options depending on the market to improve operator safety and comfort.



Technical Data Sheet
  • Transmission: The hydraulic transmission, equipped with a 2WD to 4WD switching function, ensures higher travel speed and better slope climbing ability. The hydraulic transmission with three forward gears allows reaching a maximum speed of 25 km/h.
  • Brakes: The oil-immersed brakes ensure long-lasting brake system, reducing wear and improving reliability, even in case of intensive use. Thanks to continuous lubrication, this type of brake maintains high performance and extends the life of the entire braking system.
  • Air filter and radiator: The high-capacity dual air filter, combined with the coil radiator and optimized heat dissipation channel, improves heat dispersion capacity and maintains stable temperatures, ensuring engine reliability even in the most demanding applications.

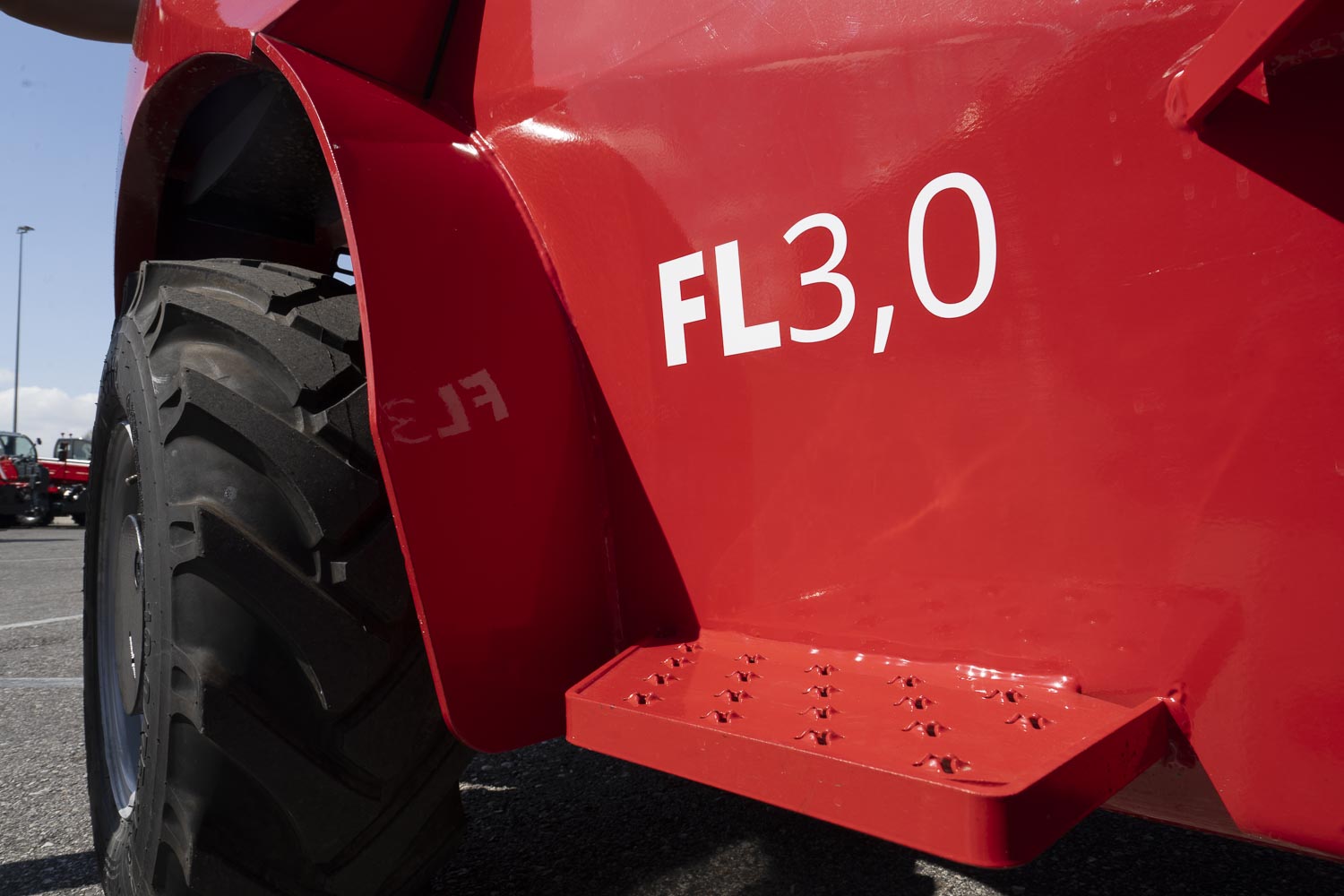

  • Tires: The drive axle is equipped with wide-base tires with deep tread, ideal for adapting to a wide range of working conditions. Other types of tires are also available, such as foam-filled or non-marking tires.

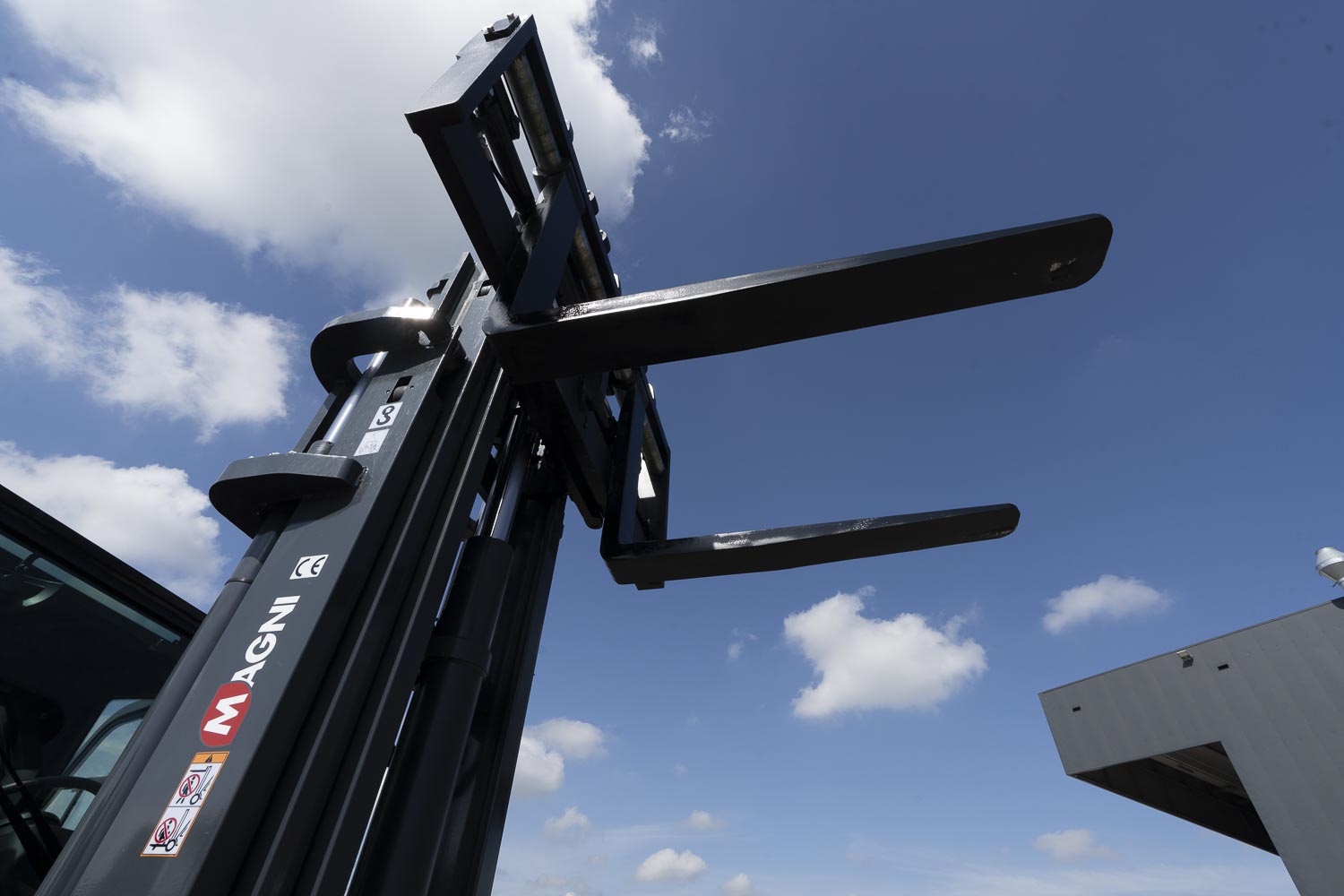

  • Visibility: The design of the cabin structure has been optimized to ensure good visibility even in the rear. All models are equipped with rearview mirrors on both sides as standard. The wide-view mast design offers excellent forward visibility thanks to the increased distance between the lift cylinders.
  • Maneuverability: The compact wheelbase and ground clearance ensure excellent maneuverability even in the tightest spaces and most difficult applications, where most rough terrain forklifts have limitations.

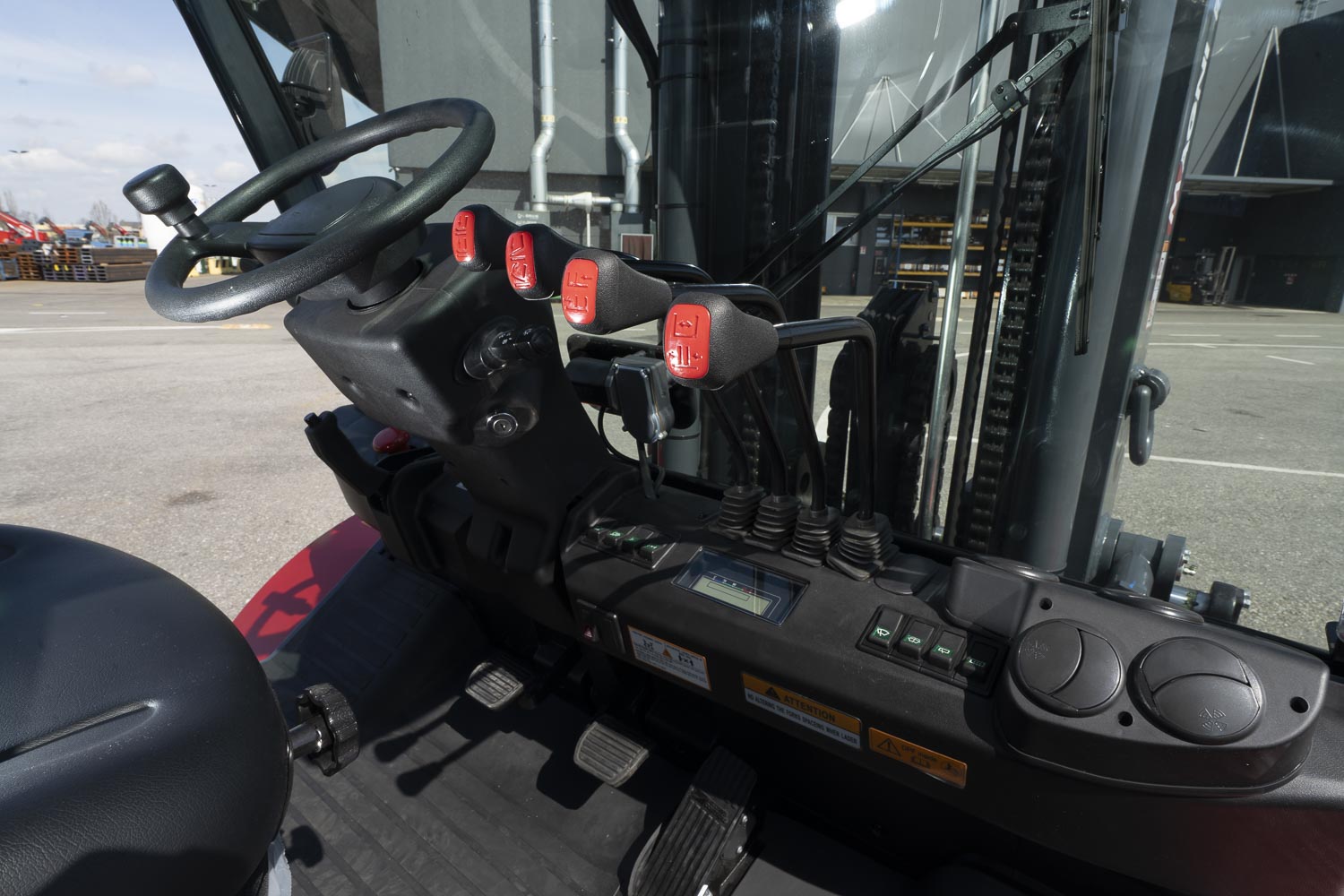

  • LCD Display: Magni forklifts are equipped with a 4-inch LCD display with four interactive buttons to display key information. There is also a CAN-bus communication function, with a protocol compatible with SAE standards.
  • Seat: Maximum operator comfort is ensured by the full suspension seat and comfort armrest.

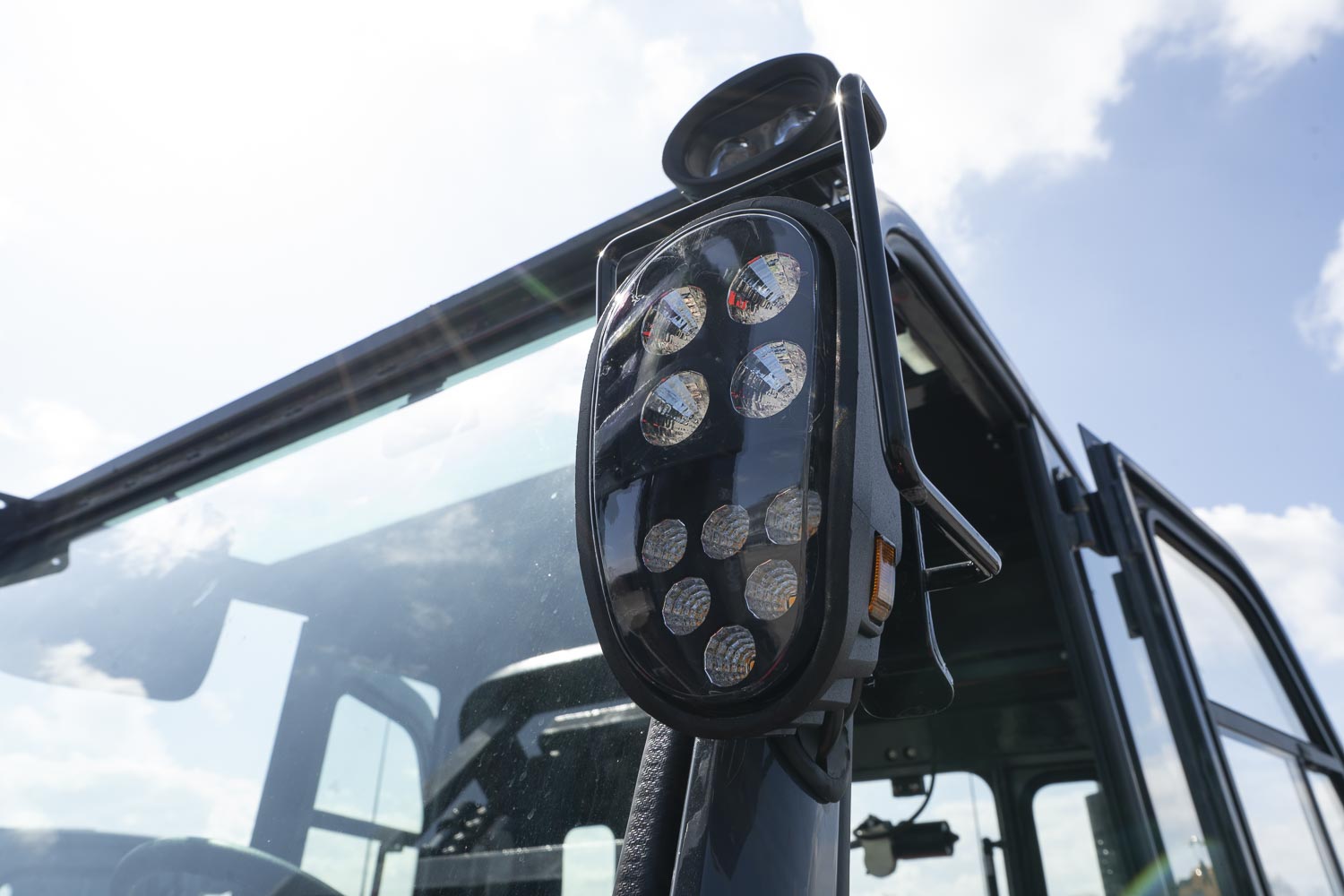

  • Lighting system: The high-efficiency lighting system uses LED lights and a new type of reflector to reduce energy consumption, significantly improve lighting performance, and maintain consistent visibility in all conditions.
  • Safety lights: The blue light, placed above the LED lights, increases the vehicle’s visibility during work operations, clearly signaling its presence. To make the forklift easily recognizable from the rear, there is also an orange flashing light, which offers excellent visibility of the forklift even in crowded or low-visibility work environments.
  • Easy maintenance: Thanks to the easy-opening hook, it is possible to quickly access the engine compartment located under the operator’s seat. Additionally, the two-piece design makes the floor easy to lift and remove for immediate access to the powertrain. The radiator cover can be easily rotated by hand, allowing for quick and simple inspections and maintenance.
  • Cabin: The configuration for forklifts with Stage V engines includes a cabin equipped with front, rear, and roof windshields. The FL “A” version, for machines with Stage IIIA engines, will have an open cabin as standard, without front and rear windshields, which will be optional instead. For both versions, a closed cabin will be available as an option, which includes side closing doors, useful when working in weather conditions that require air conditioning or heating.

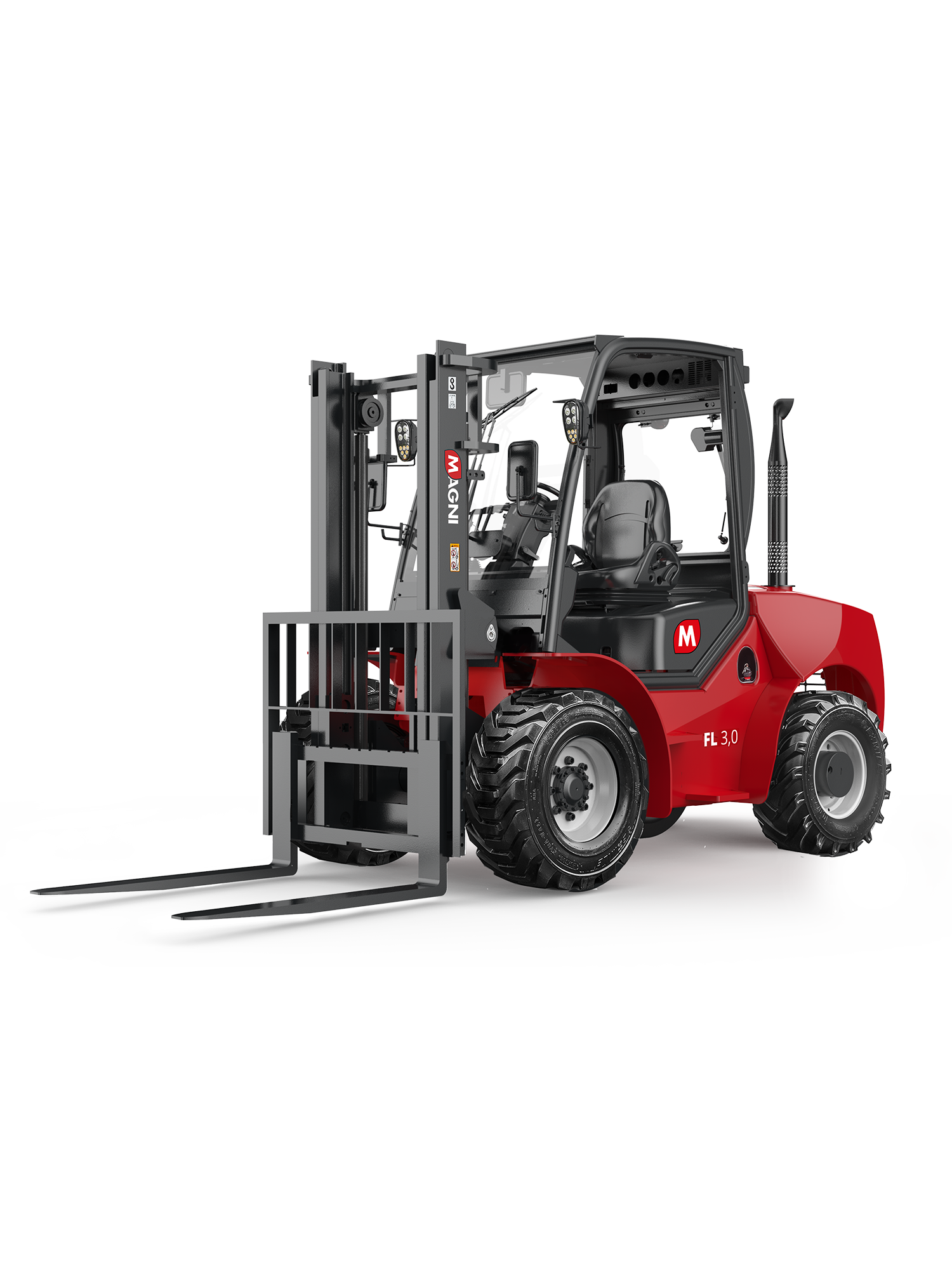

FL 3,0

Technical Data

Technical Data

Technical Data Sheet
Metric
CaratteristicaMetricoImperiale
Capacity3000 kg6600 lb
Length3.1 m10' 2''
Width1.6 m5' 3''
Ground clearance290 m11''
TransmissionHydraulic - 3-speed PowershiftHydraulic - 3-speed Powershift
EngineKUBOTA V2607-CR-TE5BKUBOTA V2607-CR-TE5B
Travel speed (laden)23 km/h14 mph
Travel speed (unladen)25 km/h15 mph
Gradeability (laden)5858
Weight5890 kg12980 lb
Power sourceDieselDiesel
Working hydraulic pressure for attachments185 bar185 bar
Oil flow rate for attachments80 l/min80 l/min
