Load capacity

454 kg

Working height

36,23 m

Max. occupants

3

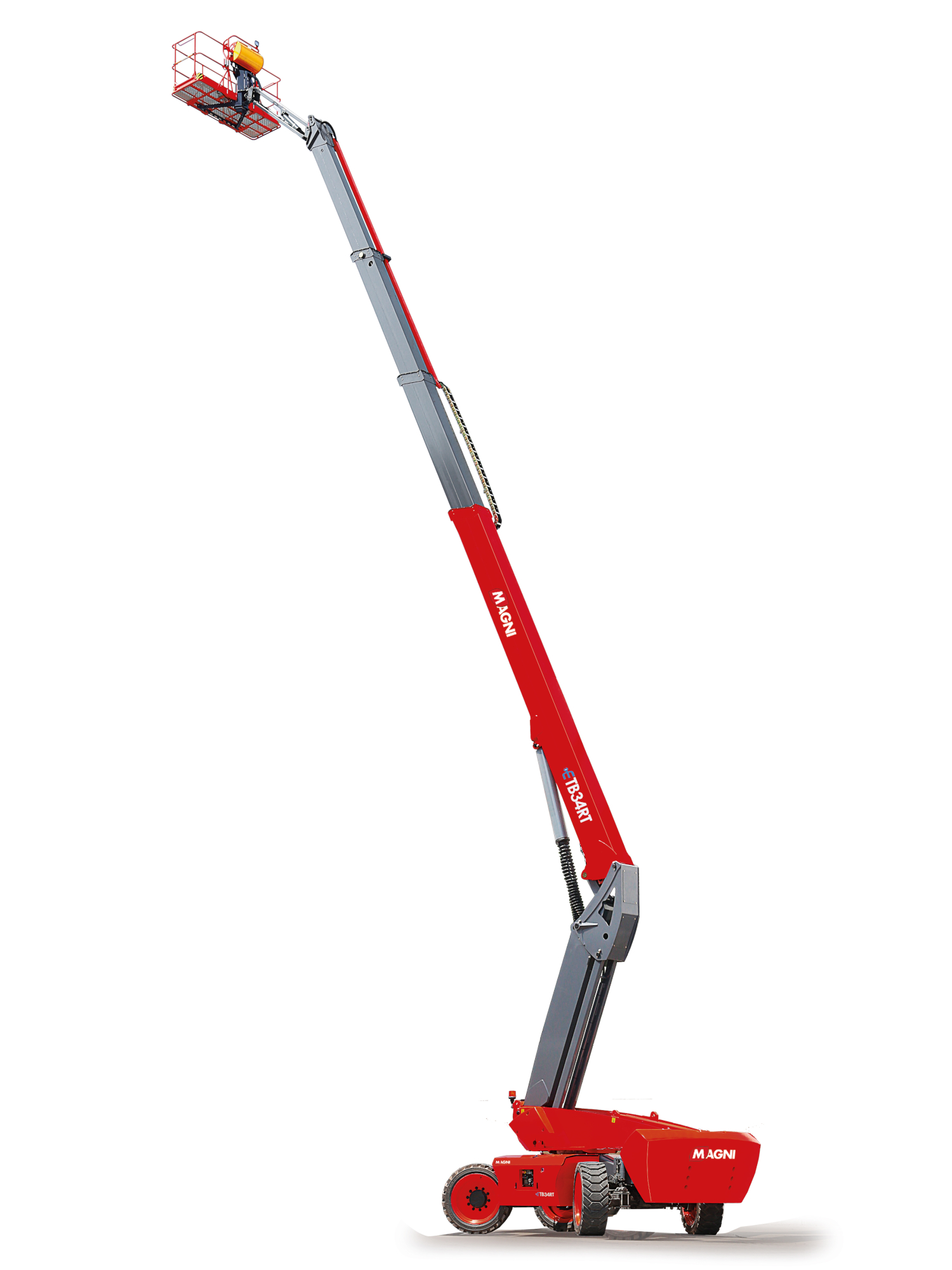

ETB36RT

Load capacity

454 kg

Working height

36,23 m

Max. occupants

3

Technical Data

The telescopic platform is equipped with a lithium battery pack with fast charging. This is an emission-free and energy-saving solution suitable for any indoor work. Features 4 steering modes for maximum flexibility: 4-wheel drive, 4-wheel steering, crab steering and U-turn. The platform also includes an arm folding mode for transport that allows the machine to be shipped via container.

Technical Data Sheet

• Two travel speeds
• Four-wheel steering
• Four-wheel drive
• Patented extending chassis
• On-site axle extension
• 360° rotation (continuous)
• Turret locking system
• Ultra-rigid boom
• Special construction equipment-grade integral driveshaft
• Hydraulic oil radiator
• Proportional controls
• Flashing light
• Non-marking tyres
• Horn
• Hour counter
• Casing opens for easier servicing
• Negative pressure brake with sensor
• Real-time on-board system
• Platform rotation angle monitoring sensor
• Chain malfunction monitoring
• Working condition monitoring
• Rexroth hydrostatic drive system
• Harsh environment kits
• 12V DC Auxiliary power

• Lithium battery – Maintenance-free
• Battery capacity: 358.4V/200Ah
• Charger: 48VDC/60A
• Three-phase 380V
• Recharge time, 0 – 100% (hours)* 12

• Self-levelling
• Rotation +/-90°
• Schuko power socket 16A/250V

• Drive enable system
• Platform load moment indicator
• On-board diagnostics system
• Tilt indicator with alarm
• Basket bottom protection sensor
• Lowering and travel alarms
• Cat.3 Safety Architecture – ISO 13849-1

Regulations

EN 280-1 Standards for mobile elevating work platforms (if available)

ANSI/SAIA A92.20

Technical Data

CaratteristicaMetricoImperiale
Max. working height36.23 m-
Max. basket height 34.23 m-
Max. reach23.6 m-
Turning radius (inside)2.99 m-
Turning radius (outside)5.41 m-
Basket length2.44 m-
Basket width0.91 m-
Basket rotation180°180°
Jib typeStandardStandard
Jib length4.2 m-
Jib Vertical Rotation230°230°
Jib travel angle75°75°
Auxiliary power12V DC12V DC
Platform max. load capacity454 kg-
Max. occupants33
Max. gradeability (stowed)30%30%
Max. working slope5°5°
Max. wind speed12.5 m/s-
Travel speed (closed config.) 6 km/h-
Travel speed (working config.) 1.1 km/h-
Turret rotation360° Continuous360° Continuous
Hydraulic tank capacity230 l230 l
Tyres445/50-D710445/50-D710
Battery typeLithium batteryLithium battery
Battery capacity358,4V/200Ah358,4V/200Ah
Charger200Ah/358,4V200Ah/358,4V
Charger typeThree-phase 380VThree-phase 380V
Recharge time, 0 -100% *12 h12 h
Total weight19610 kg-
Platform length (transport)11.92 m-
Platform width (transport)2.44 m-
Platform width (axle expanded) 4.17 m-
Platform width (axle retracted)2.44 m-
Platform height (transport) 2.83 m-
Wheelbase (axle extended)4.07 m-
Wheelbase (axle retracted)4.27 m-
Tailswing1.39 m-
Ground clearance0.4 m-
