454 kg
44,44 m
3

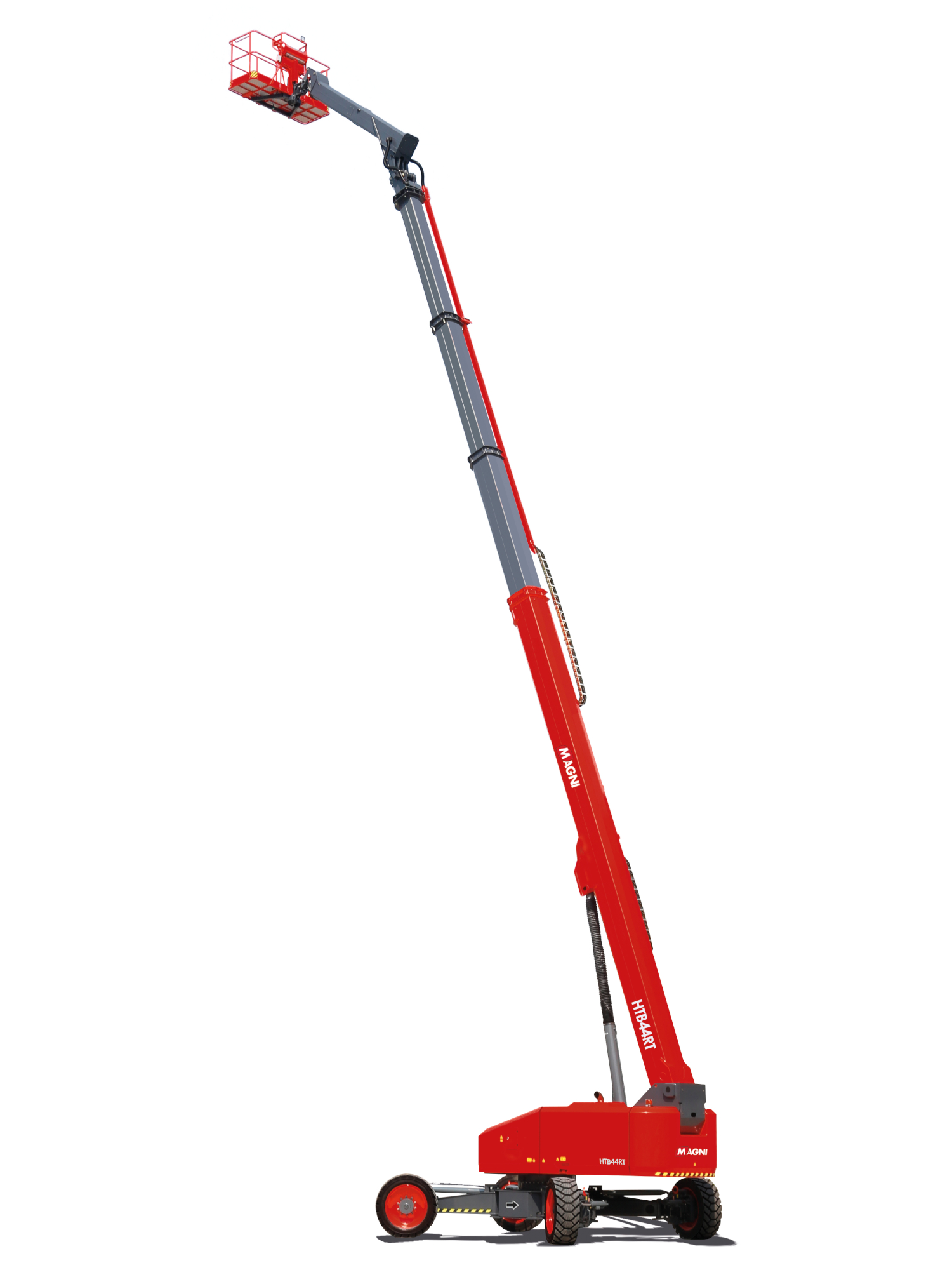

Home > Aerial Working Platforms > Telescopic > HTB44RT
This hybrid platform is an environmentally friendly solution that ensures high efficiency and reduced operating costs. Thanks to the Range Extender engine, the platform can operate electrically with an extended range of up to 30 days. In fact, in combination with the combustion engine, the range extender can charge the batteries at any time. It features 4 steering modes for maximum flexibility: 4-wheel drive, 4-wheel steering, crab steering, and U-turn steering. The platform also includes a boom folding mode for transport that allows for shipping the vehicle via container.
• Oscillating front axle • Two travel speeds • Four-wheel steering • Four-wheel drive • Patented extending chassis • On-site axle extension • 360° rotation (continuous) • Turret locking system • Ultra-rigid boom • Hydraulic oil radiator • Special construction equipment-grade integral driveshaft • Proportional controls • Thumb rocker steering • Flashing light • Non-marking tyres • Horn • Hour counter • Casing opens for easier servicing • Negative pressure brake with sensor • Real-time on-board system • Platform rotation angle monitoring sensor • Chain malfunction monitoring • Speed monitoring • Working condition monitoring • Rexroth hydrostatic drive system • Harsh environment kits • 12V DC Auxiliary power
• Lithium battery – Maintenance-free • Battery capacity:358.4V/150Ah • Charger: 358.4V/32A • Three-phase 380V • Range Extender engine: Kubota D1105/18.2kW • Recharge time, 0 – 100% (hours)* 9
• Self-levelling • Rotation +/-90° • Schuko power socket 16A/250V
• Drive enable system • Platform load moment indicator • On-board diagnostics system • Tilt indicator with alarm • Basket bottom protection sensor • Lowering and travel alarms • Cat.3 Safety Architecture – ISO 13849-1
EN 280-1 Standards for mobile elevating work platforms (if available)
ANSI/SAIA A92.20
