Load capacity

454 kg

Working height

30,3 m

Max. occupants

3

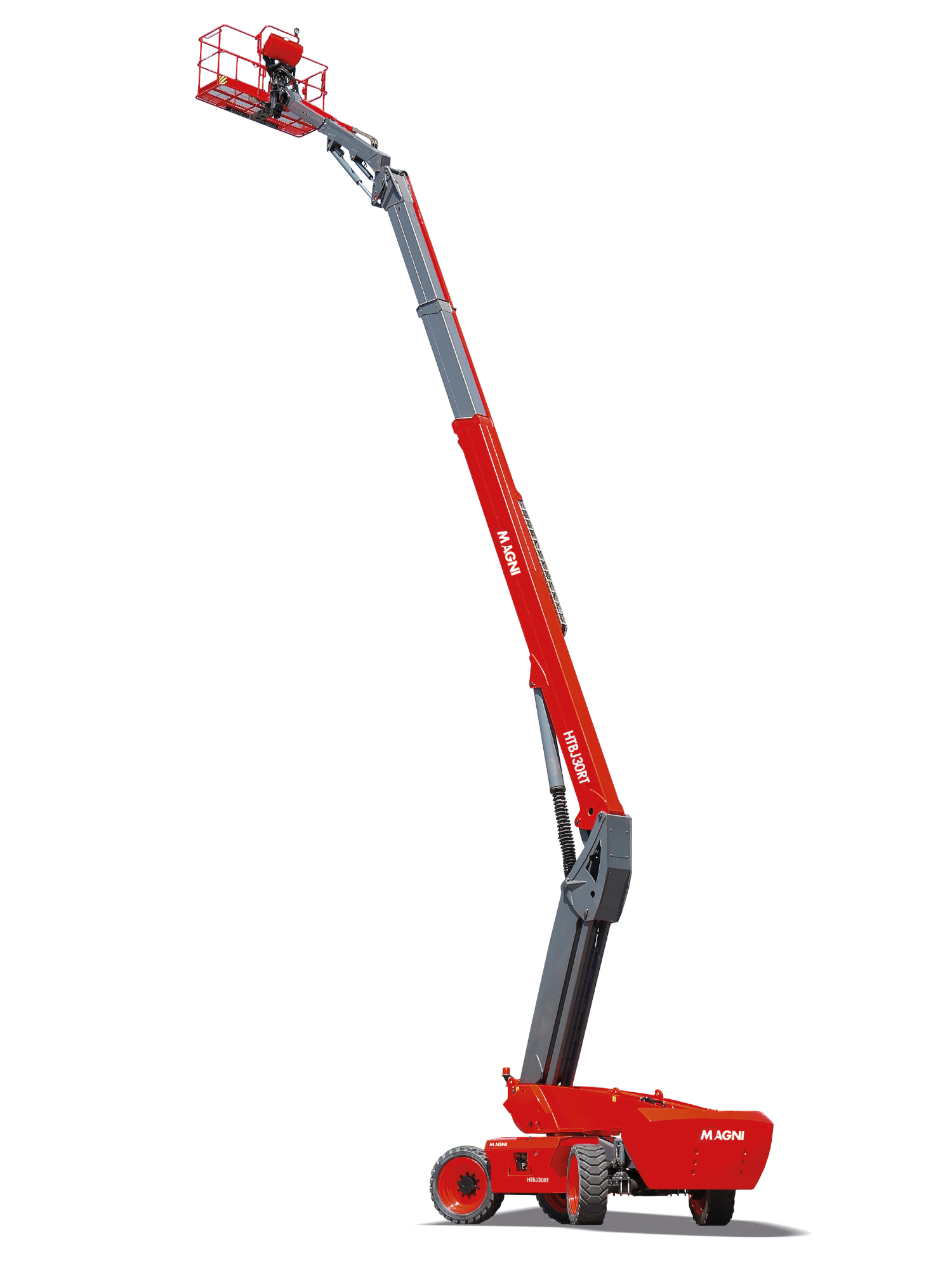

HTBJ30RT

Load capacity

454 kg

Working height

30,3 m

Max. occupants

3

Technical Data

This hybrid platform is an environmentally friendly solution that ensures high efficiency and reduced operating costs. Thanks to the Range Extender engine, the platform can operate electrically with an extended autonomy of up to 30 days. In fact, in combination with the combustion engine, the range extender can charge the batteries at any time. The platform is equipped with a telescopic jib with an arm folding mode for transport that allows the vehicle to be shipped via container.



Technical Data Sheet

• Telescopic jib
• Oscillating front axle
• Two travel speeds
• Four-wheel steering
• Four-wheel drive
• 360° rotation (continuous)
• Special construction equipment-grade integral driveshaft
• Proportional controls
• Thumb rocker steering
• Flashing light
• Non-marking tyres
• Horn
• Hour counter
• Harsh environment kits
• 12V DC Auxiliary power

• Lithium battery – Maintenance-free
• Battery capacity: 80V/420Ah
• Single and three-phase, 380V and 220V
• Range Extender engine: Kubota Z482/9.8kW
• Recharge time, 0 – 100% (hours)* 5.5

• Self-levelling
• Rotation +/-90°
• Schuko power socket 16A/250V

• Drive enable system
• Platform load moment indicator
• On-board diagnostics system
• Emergency lowering system
• Tilt indicator with alarm
• Basket bottom protection sensor
• Lowering and travel alarms

Regulations

EN 280-1 Standards for mobile elevating work platforms (if available)

ANSI/SAIA A92.20

Technical Data

CaratteristicaMetricoImperiale
Max. working height30.3 m-
Max. basket height 28.3 m-
Max. reach23 m-
Turning radius (inside)1.87 m-
Turning radius (outside)3.22 m-
Basket length2.44 m-
Basket width0.91 m-
Basket rotation180°180°
Jib typeTelescopicTelescopic
Jib Vertical Rotation3,983,98
Auxiliary power12V DC12V DC
Platform max. load capacity454 kg-
Max. occupants33
Max. gradeability (stowed)30%30%
Max. working slopeX-5°/Y-5°X-5°/Y-5°
Max. wind speed12.50 m/s-
Travel speed (closed config.) 6 km/h-
Travel speed (working config.) 1.1 km/h-
Turret rotation360° Continuous360° Continuous
Range extender engineKubota Z482/9.8kWKubota Z482/9.8kW
Diesel tank capacity110 l110 l
Hydraulic tank capacity165 l165 l
Tyres385/45-28385/45-28
Battery typeLithium batteryLithium battery
Battery capacity420Ah/80V420Ah/80V
Charger typeSingle- and three-phase, 220 V & 380 VSingle- and three-phase, 220 V & 380 V
Recharge time, 0 -100% *5,5 h5,5 h
Total weight18900 kg-
Platform length (transport)8.82 m-
Platform width (transport)2.5 m-
Platform height (transport) 2.96 m-
Wheelbase2.8 m-
Tailswing1.61 m-
Ground clearance0.41 m-
