ETB22RT
Family
Technical features
Standards met
- ANSI/SAIA A92.20
- EN 280-1 : standards relating to mobile elevating work platforms (if available)
Description

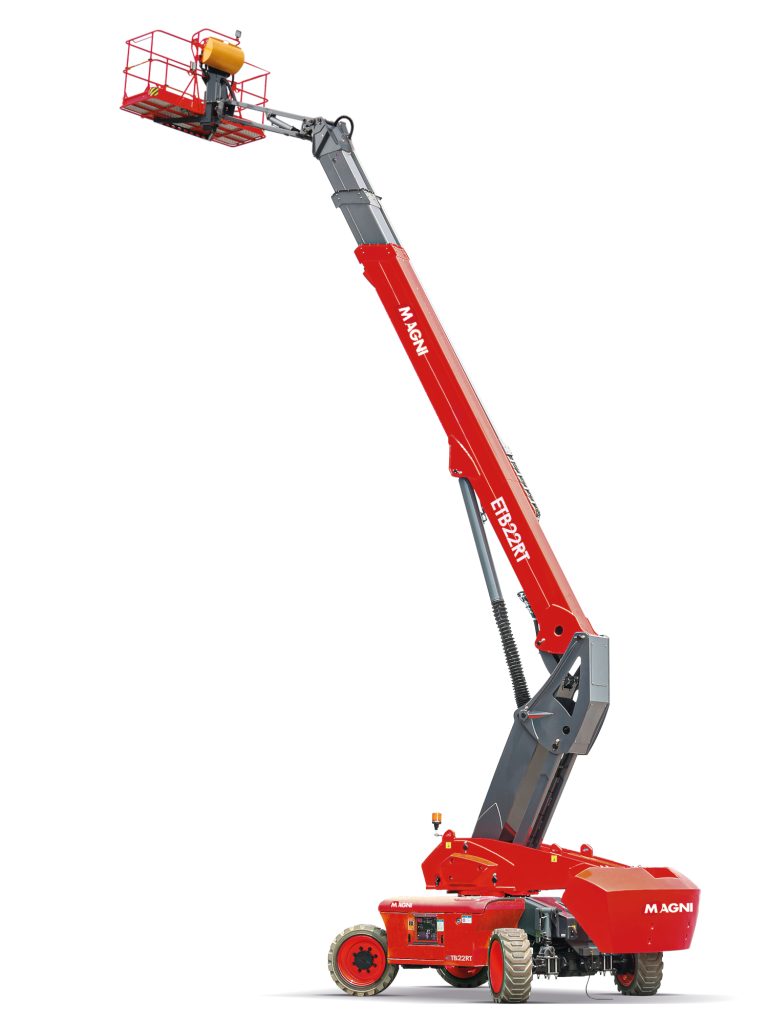

This telescopic platform is equipped with an integrated high capacity battery pack. As a result, it is silent and emissions free, the ideal solution for working in enclosed spaces. The platform is equipped with 4 steering drive wheels for improved stability on any surface. The boom folds for transport so that the vehicle can be shipped in a container.
STANDARD EQUIPMENT
• Oscillating front axle
• Two travel speeds
• Four-wheel steering
• Four-wheel drive
• 360° rotation (continuous)
• Special construction equipment-grade integral driveshaft
• Proportional controls
• Thumb rocker steering
• Flashing light
• Non-marking tyres
• Horn
• Hour counter
• Harsh environment kits
• 12V DC Auxiliary power
BATTERY
• Lithium battery – Maintenance-free
• Battery capacity: 80 V/420 Ah
• Single- and three-phase, 380 V & 220 V
• Recharge time, 0 – 100% (hours)* 5.5
BASKET
• Self-levelling
• Rotation +/-90°
• Schuko power socket 16A/250 V
SAFETY
• Drive enable system
• Platform load moment indicator
• On-board diagnostics system
• Emergency lowering system
• Tilt indicator with alarm
• Crushing protection
*This product may not be available in all markets.
