Rotating
Fixed
Heavy duty
Agricultural fixed
55100 lb
34 ft
175 kW
Home > Telescopic handlers > HTH > HTH 55.34
25000 kg

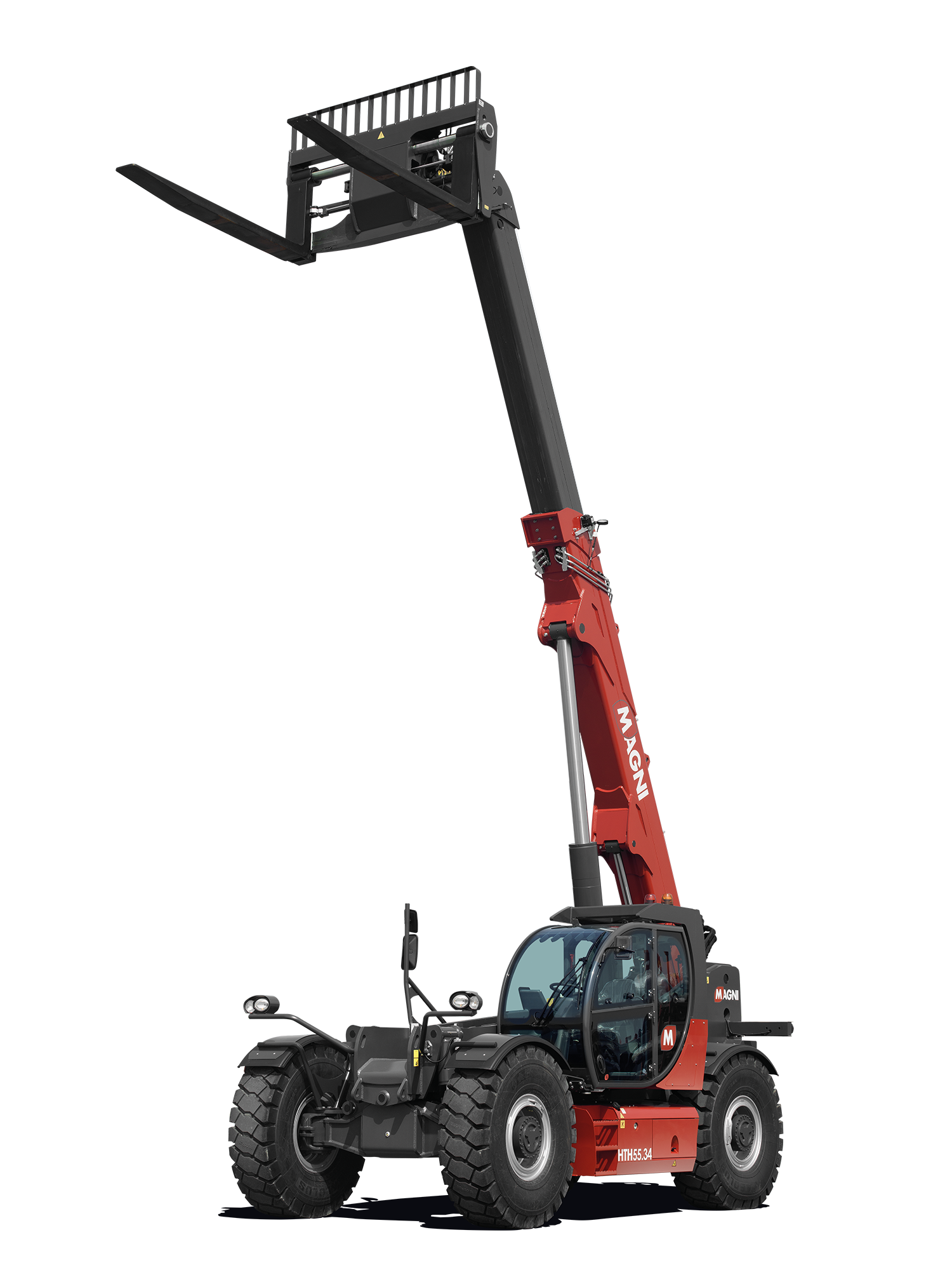

The high-capacity telescopic handler HTH 55.34 represents an evolution compared to the previous HTH 53.34 model, maintaining the same dimensions and main technical characteristics, but with a substantial improvement in load capacity.
One of the main innovations introduced by the HTH 55.34 model concerns the load diagram, which has been completely revised, resulting in a concrete improvement in performance. With a load capacity of 39,700 lb at the maximum height of 34′ 5”, the new model offers a significant increase compared to the 30,850 lb of the previous version, with a gain of 8,800 lb at full height (+29%).
The capacity at the maximum horizontal reach of 19 ft has also been the result of careful optimization: while the previous model offered a capacity of 15,650 lb the new HTH 25.11 is able to lift up to 17,600 lb (+11%), thus ensuring greater operational capacity even in the most demanding operations.
The standard configuration of the machine includes:
Comfort seat Adjustable steering column Analog joypad Heating Air conditioning FM/AM radio with USB and Bluetooth connectivity USB Type-A inputs (5V)
7-inch touch screen MCTS – Magni Combi Touch System on-board software Automatic RFID attachment recognition system LMI – Load control system Integrated on-board and remote diagnostics
Heavy-Duty Q-fit Two-line CAN-bus system Automatic alignment of front and rear wheels Automatic parking brake Mechanical battery disconnect in engine compartment 24V electrical system -IP67
MyMagni by Trackunit connectivity system (free of charge on request) Warranty: 24 months/2,000 hours
2006/42/CE EU Machinery Directive
2016/1628 EU regulation on the emissions of Stage V engines
EN 1459-X Relating to standards on the safety requirements for variable reach machines
ROPS/FOPS Level 2 Relating to the standards for protective structures
